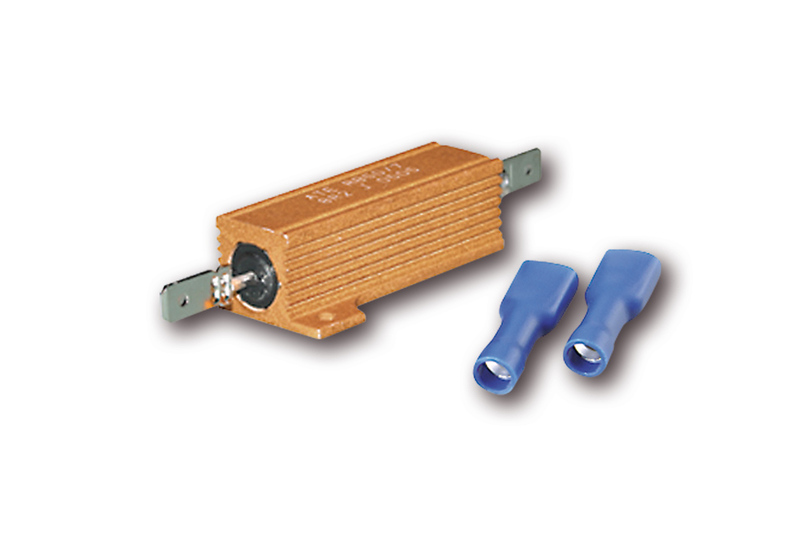

KELLERMANN i.LOAD Power resistor IL 7.5

The flashing frequency changes automatically when the original indicator is converted to LED or halogen indicator. The parallel-connected power resistors provide a remedy. The correct selection of suitable resistors is listed in the table below. If you are not sure which resistance you need, please do not hesitate to contact us via the contact form (technical department) on our homepage.

For micro 1000 / Rhombus DF / DF Dark and a light indicator light 1 resistor á 33 Ohm for the rear light and 1 resistor á 7.5 Ohm for the brake light is required.

Required resistance for conversion to Kellermann indicators (per indicator)

21 Watt Power consumption of original indicators

micro 1000 Halogen - 10 Ohm Art. 123.950

micro 1000 / micro Rhombus (yellow, white, dark, DF, PL, Extreme) - 7.5 Ohm Art. 123.952

BL 1000 Halogen (yellow, white, SG) - no power resistor

BL 1000 LED (LED, dark, PL) - 7.5 Ohm Art. 123.952

Required resistor for conversion to Kellermann indicators (per side)

10 Watt Power consumption of original indicators

micro 1000 Halogen - 10 Ohm Art. 123.950

micro 1000 / micro Rhombus (yellow, white, dark, DF, PL, extremes) - 10 Ohm Art. 123.950

BL 1000 Halogen (yellow, white, SG) - no power resistor

BL 1000 LED (LED, dark, PL) - 10 Ohm Art. 123.950
