Kit cilindro TOP PERFORMANCES Racing Ø49,5 mm C44 mm

Racing piston-cylinder unit Ø 49.5 for Maxi Kit 85cc. Part no. 9921760

Warning: Only fit together with crankshaft Part no. 9920410 !!!

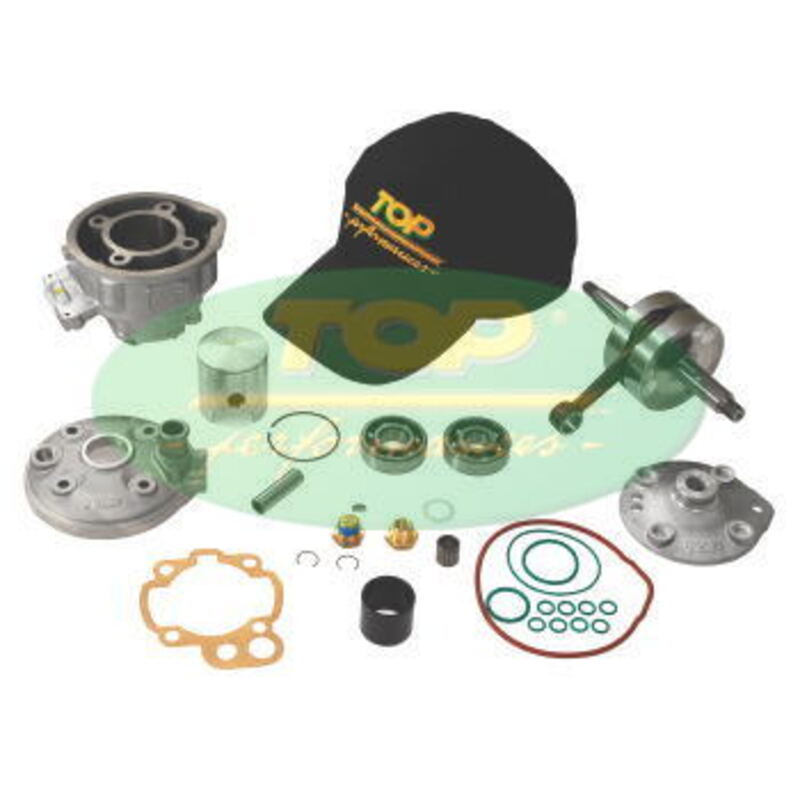

Scope of delivery:

1 Cylinder Ø 49.5 mm in special “MINACROM” cast iron (with chrome additive)

1 Piston Ø 49.5 with high silicon content

1 Chrome-plated steel piston ring 1 mm thick

1 Piston gudgeon pin Ø 12 x 42 mm

1 Roller bearing for gudgeon pin Ø 12 x 15 x 15 mm

2 Gudgeon pin circlips

1 Combustion chamber

1 Combustion chamber cover

8 O-ring Ø 7.66 x 1.78 in Viton, green

1 O-ring Ø 53.7 x 1.78 in Viton, green

1 O-ring Ø 22.22 x 2.62 in Viton, green

1 O-ring Ø 28.24 x 2.62 in Viton, green

1 O-ring Ø 104.37 x 3.54

1 Reduction for temperature sensor

1 Plug M14 x 1.25

1 Aluminium gasket for plug M14 x 1.25

1 Cylinder base gasket 0.5 mm

1 Reduction bushing for exhaust from Ø 28 to Ø 25 mm

• Bore: 49.5 mm
• Stroke: 44 mm
• Displacement: 85 cc.
• Squish: 0.9 ± 0.1
• Timing diagram: exhaust: 191° / transfer ports: 132°
• Compression ratio: geometric: 14.7:1 / actual: 8:1
• Recommended spark advance: 17° (1 mm before TDC)
