Ammortizzatore posteriore YSS Top Line G-Top

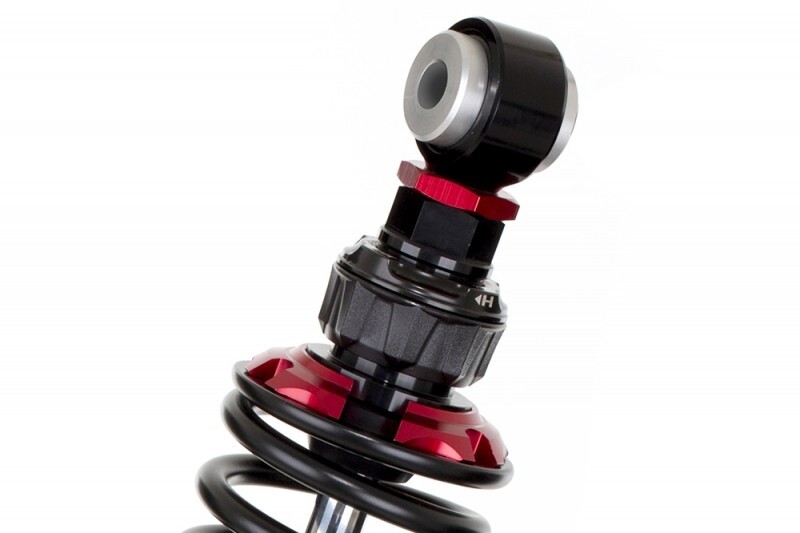

Milled aluminium body, spring strut adjustable in spring preload, rebound (30 clicks) and compression (30 clicks).
The spring preload is locked by means of a grub screw.
The length of the shock is adjustable by +-5mm.

Technical data:

• Type: Gas pressure
• Fastening at the top: Eye
• Internal diameter of eye: 10 mm
• Length: 440 mm
• Fastening at the bottom: Fork
• Width of fork: 30 mm

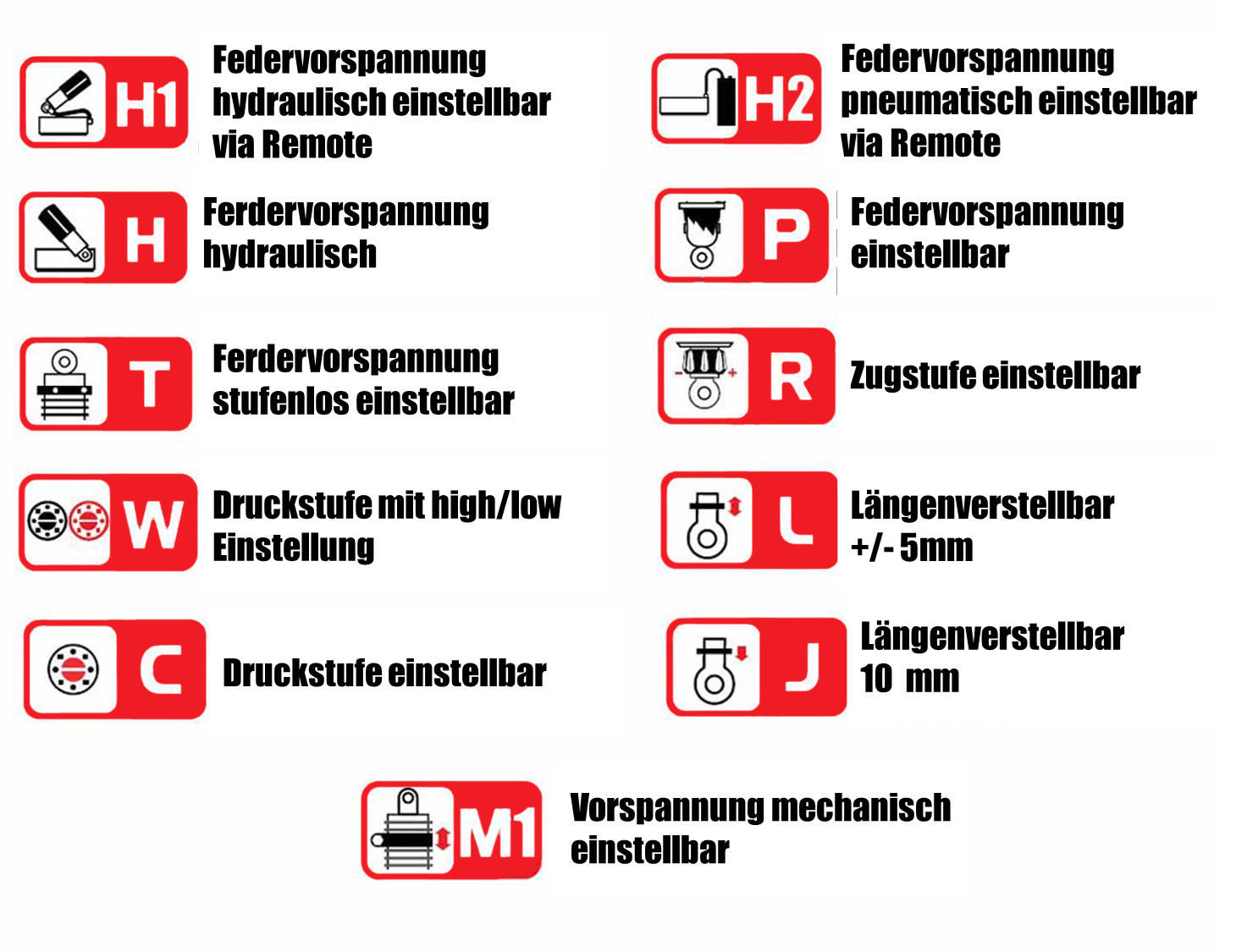

• Adjustment options:</strong
  • Compression damping
  • Infinitely variable spring preload
  • Length adjustable ± 10 mm
  • Rebound damping
• Spring colour: Black
• Spring characteristic curve: 10-15
• Spring length: 260 mm
• Diameter spring: 50 mm

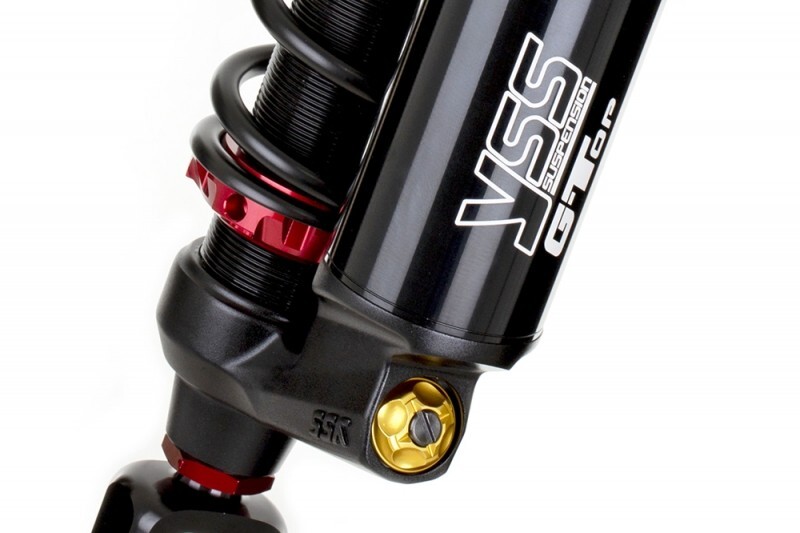

• Compensation reservoir: Yes
• Manufacturer: YSS
• Piston diameter: 36 mm
• Piston rod diameter: 12 mm

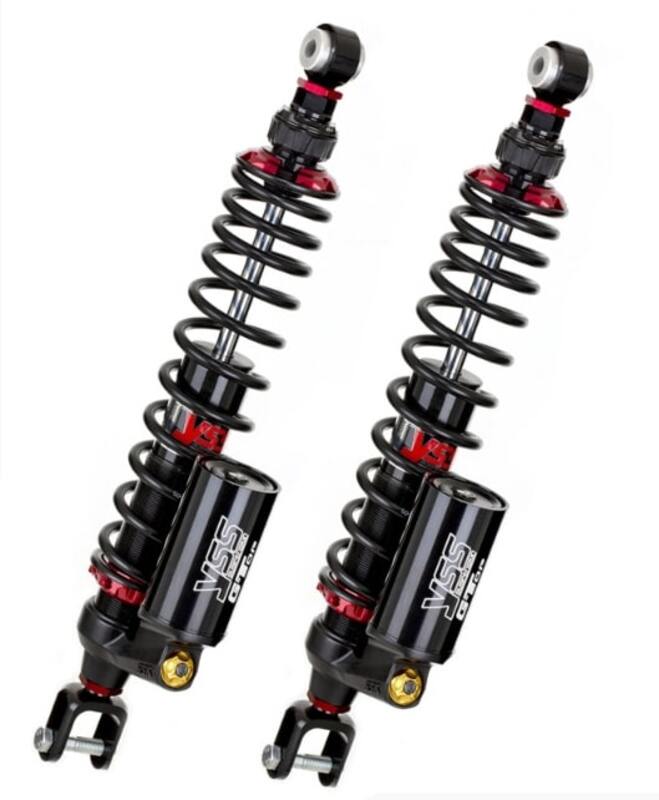

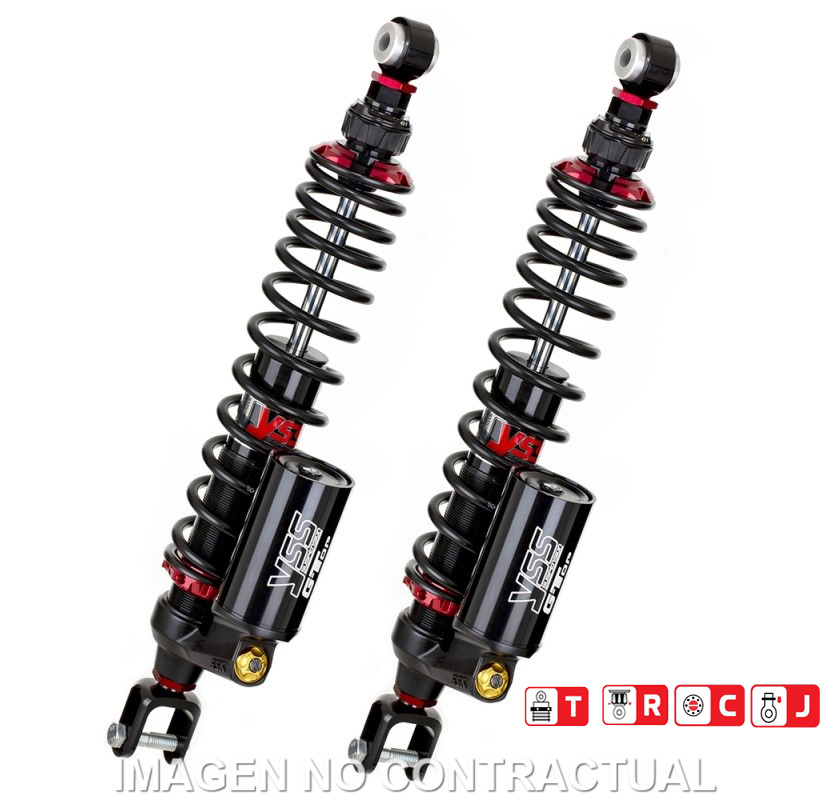

Product: Stereo YSS shock absorber (adjustable black SERIES)
